Flip plate cooler
The flip plate cooler is widely used in the feed industry for cooling various pellets, such as pelletizing materials, extruded materials, and tablet materials, especially suitable for cooling extruded pellet materials.
MOQ: 1
- Overview
- Recommended Products
Product Overview
The flip plate cooler is widely used in the feed industry for cooling various pellets, such as pelletizing materials, extruded materials, and tablet materials, especially suitable for cooling extruded pellet materials.
Specifications and Parameters
| MODEL | OUTPUT(T/H) | COOLING TIME(MIN) | MOTOR POWER(KW) |
| SKLN16X16 | 4-6 | 8-15 | 1.5+1.5 |
| SKLN20X20 | 8-12 | 8-15 | 1.5+1.5 |
| SKLN24X24 | 15-20 | 8-15 | 1.5+3 |
| SKLN28X28 | 22-28 | 8-15 | 2.2+3 |
| SKLN30X30 | 30-35 | 8-15 | 2.2+4 |
Product Details Description

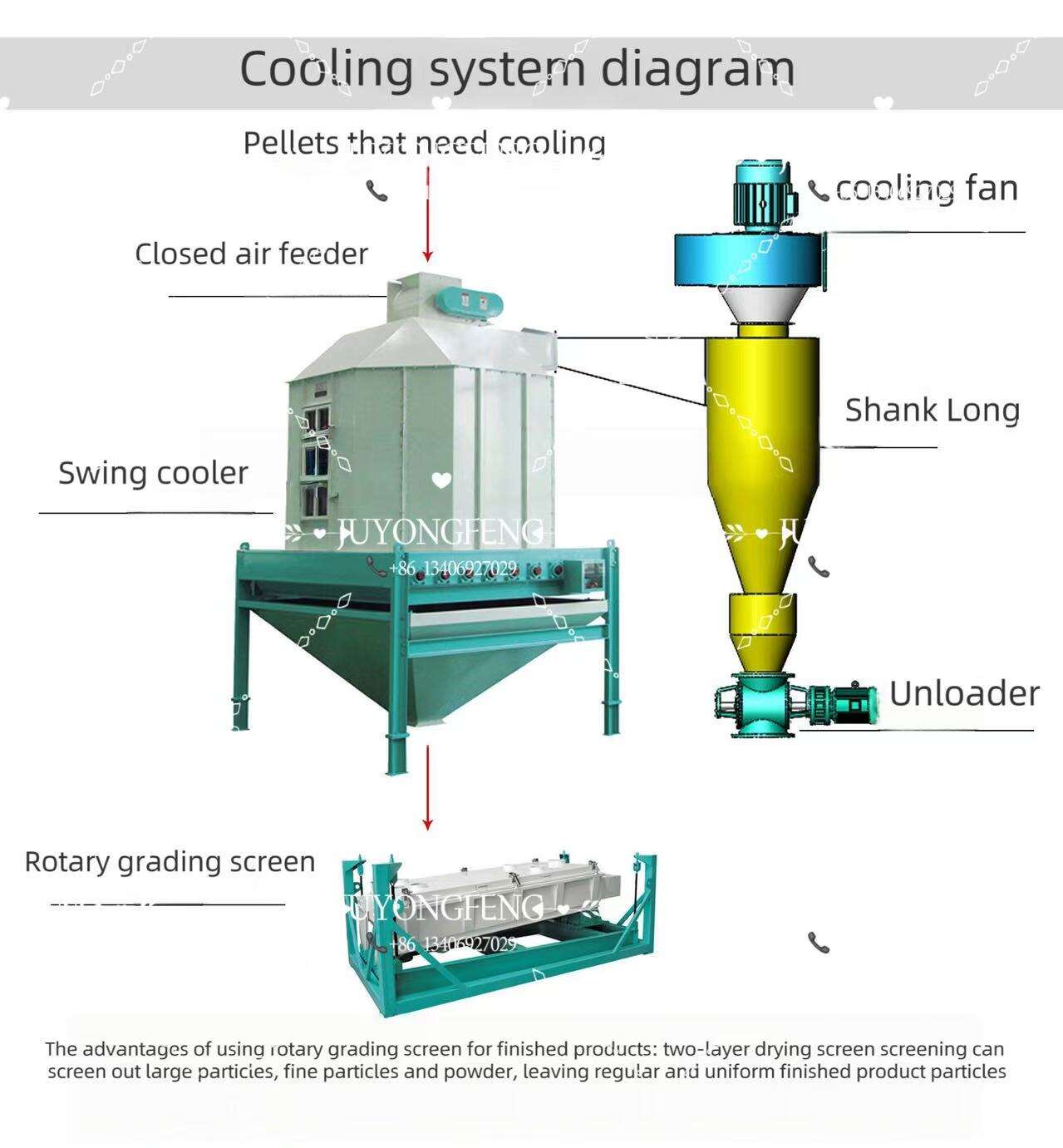

1）The cooling air moves in opposite directions to the granular materials, gradually cooling the materials from bottom to top. The cooling effect is superior to that of other products.
2) The main components are mechanically bent, riveted and welded, and have good sealing performance.
3) The swinging flap unloading mechanism controlled by the flexible hydraulic transmission system has adjustable unloading speed, ensuring uniform and smooth unloading.
